CSS Flexbox Layout- Learn to use align-items Property 18th Dec 2021

align-items

In this blog, we will learn about baseline value of align-items property.The other values of align-items property were already discussed in this blog. I found baseline a bit tricky to get compared to others so created this.

You can go to my demo to download the code and try out on your own.Github repository link for css3flexboxdemo is Flexbox Layout Demo.In the github repo, look for file demo-of-align-item-baseline.html which is relevant to this blog.

With baseline,it means the line upon which most letters sit.When this value is set for Flex Items,then it will align Flex Item along their contents baseline.So if you everu want the text isnside the flex items to line up, go with baseline.In order tp understand it better lets look at an egample. In the first eg,I will have align-items to be flex-start

                  <style>
                  .flex-container {
                    display: flex;
                    background-color: green;
                    align-items: flex-start;
                    flex-direction: row;
                    height: 100px;
                  }
                  .flex-container > div {
                    width: 1200px;
                  }
                  .item1 {
                    height: 40px;
                    background-color: red;
                    padding: 10px;
                    font-size: 30px;
                  }
                  .item2 {
                    height: 50px;
                    background-color: grey;
                    padding: 10px;
                    font-size: 60px;
                  }
                  .item3 {
                    height: 40px;
                    background-color: cyan;
                    padding: 10px;
                    font-size: 15px;
                  }
                  .item4 {
                    height: 40px;
                    background-color: lightcoral;
                    padding: 10px;
                    font-size: 40px;
                  }
                  .item5 {
                    height: 40px;
                    background-color: lightskyblue;
                    padding: 10px;
                    font-size: 50px;
                  }
                  </style>


haditbeenflexstart

If you see the above result closely, you will notice that the text is not aligned properly

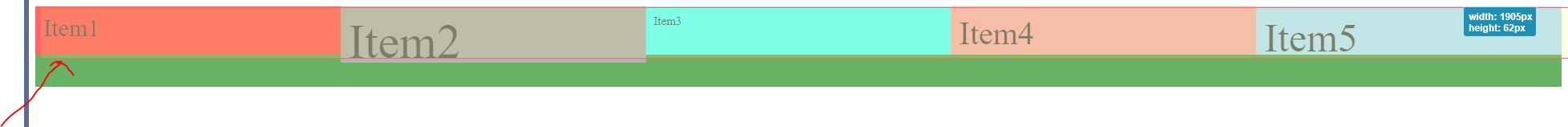

Now if you check the resulting image closely and observe, you will notice that all divs/children/Flex Items kind of pass through through the line marked in red.(Please zoom in if you want to see the image better)


kindofbaseline

Now just to confirm that our understanding is correct of baseline, lets actually try that out.Replace flex-start with baseline for align-items property.

                  <style>
                  .flex-container {
                    display: flex;
                    background-color: green;
                    align-items: baseline;
                    flex-direction: row;
                    height: 100px;
                  }
                  ....
                   Rest all remain same as in egample above
                  </style>

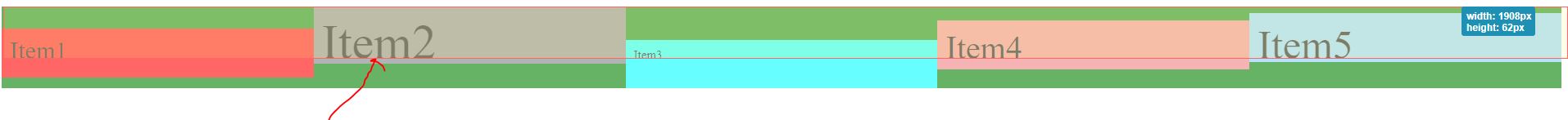

kindofbaseline-result

Again, please zoom into image to see the baseline better.This time you can see how text inside Flex Items are aligned nicely.All the text is sitting on the baseline.Hope this clarifies baseline value of align-items property

And that's it. Hope this article was helpful. .Email me at "techspacedeck@gmail.com" incase you have queries. Alternatively, you can fill the "CONTACT" form or drop a comment below
